Two ways to stack
The words get used loosely in stores, so it helps to separate them. A stacked pair is an ordinary front-load washer and a matching front-load dryer, sold separately, with a bracket kit that locks the dryer's feet onto the washer's top. A laundry center is a single appliance built as one tall unit from the start.
Which one you have matters the moment you call for service. A stacked pair is two appliances with two model numbers. A laundry center has one data plate, often on the dryer section's door frame or on the side of the washer opening, and its parts list covers both halves.

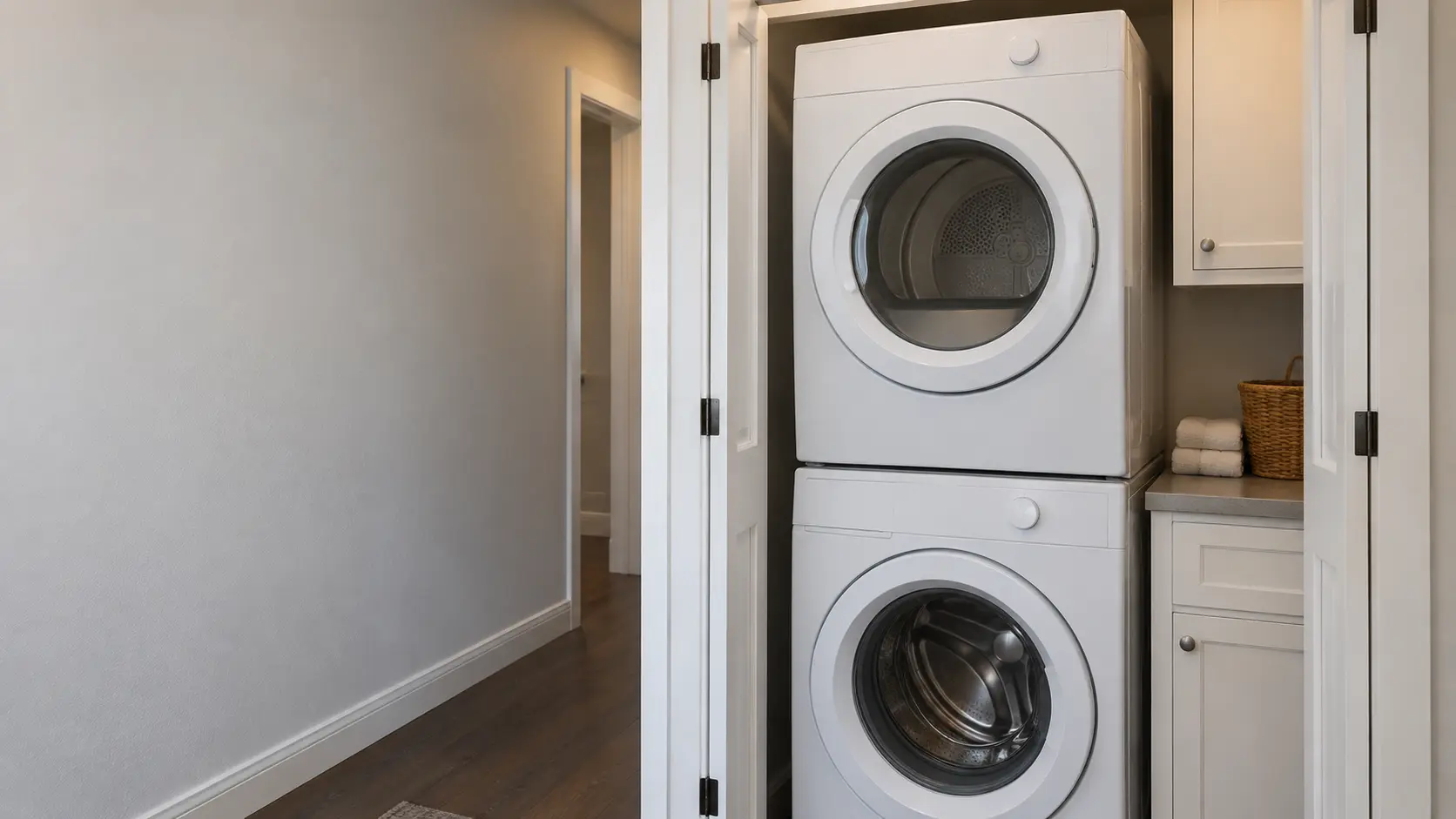

The stacked pair
Full-size front-loaders are typically 27 inches wide and can be stacked only when the maker lists a kit for that washer and dryer combination. Mixing brands is generally unsupported, because the feet and the top of the washer must line up with the kit. The pair gets tall, so the top of the dryer controls can end up well above eye level for shorter adults.
The one-piece laundry center
Most laundry centers pair a top-load washer with a dryer above it, in widths of 24 or 27 inches. The dryer drum is smaller than a standalone full-size dryer's, which suits a smaller household. Controls for both halves often sit on a single console at the top, and some share a power cord or a gas connection routed through the one frame.
What fits where
Measure the opening before choosing, and measure the path in as well: doorways, stair turns and the closet door frame. Height matters more than people expect, because the installation instructions ask for clearance above the top unit and space behind it for the vent and connections.
A closet adds conditions of its own. Many installation manuals set minimum gaps at the sides, top and back, and some call for a louvered door or a set area of openings so the dryer can draw air. Those figures differ by model, so read the manual for the exact unit you plan to buy rather than a general rule.
Compact 24-inch pairs open another option. Some compact dryers plug into a standard 120-volt outlet and need no duct, which suits apartments where neither a 240-volt circuit nor an outside wall is available. They hold much smaller loads, so a household that fills a full-size washer will be running the compact dryer twice for every wash.
- Width and depth of the opening, with the door or bifold fully open.
- Height to the ceiling or shelf, minus the clearance the manual requires on top.
- Distance to the outside wall for the vent, counting every elbow.
- Where the gas valve or the 240-volt outlet sits, since it must remain reachable once the stack is in.

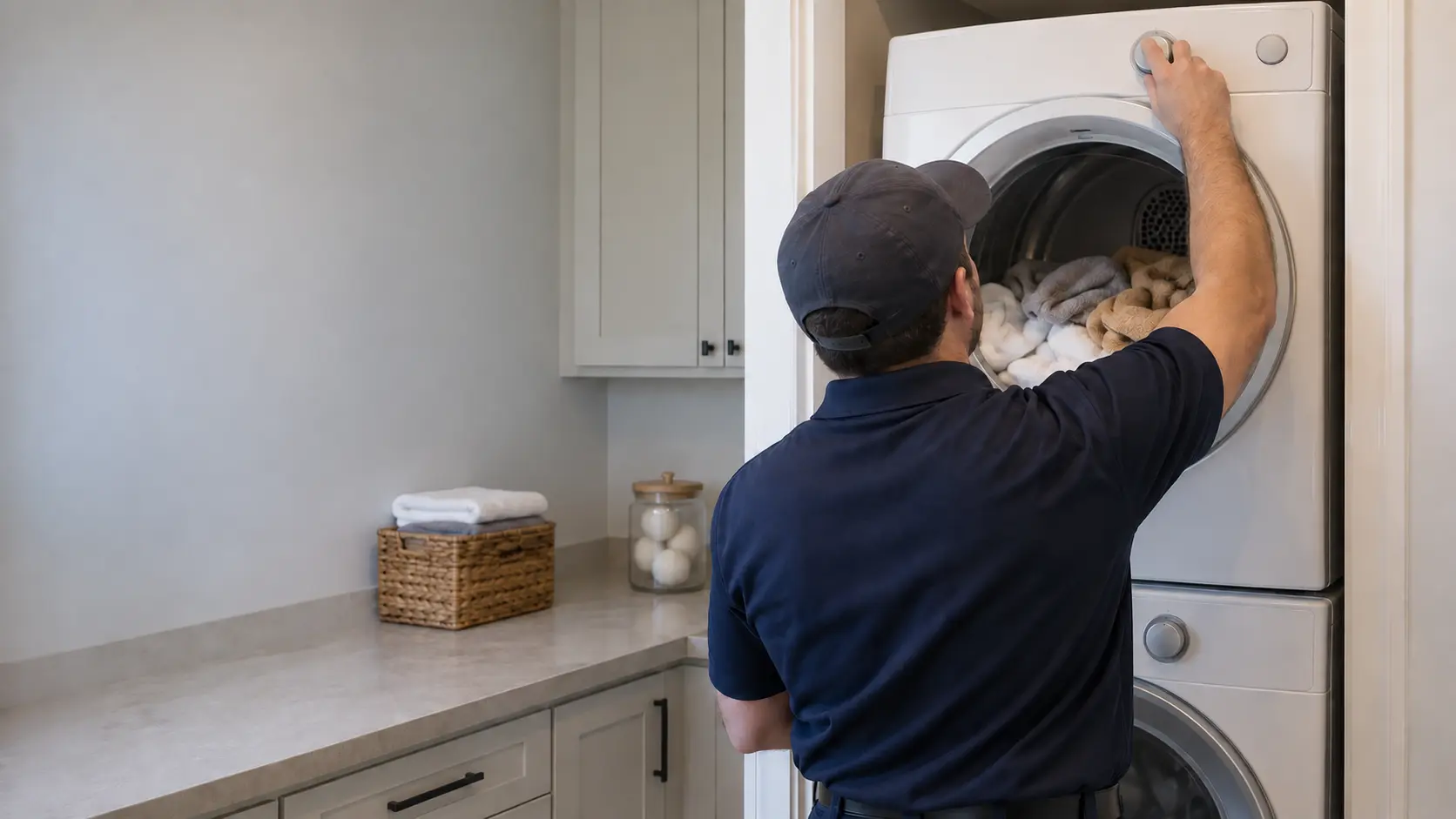

What goes wrong on a stacked dryer
The dryer on top wears the same parts any dryer does, but the position shapes both the failure and the fix.
Reaching the dryer is also harder, which is why small jobs get put off. A lint screen at chest height is easy; a duct connection hidden behind a stack in a closet is not, and nobody checks it until drying slows down.
The duct nobody can see
Once a stack is pushed into a closet, the duct behind it is out of sight and out of reach for years. It often gets crushed against the wall during installation, or pulled loose from the dryer's outlet when the stack is nudged back. Slow drying on a stacked dryer points to the duct more often than to any part inside the machine.
Vibration from below
The washer's spin shakes everything above it. A stack that is not level, or a stacking kit with a missing bracket, lets the dryer walk and rattle, and over time it loosens the dryer's own panels and wiring connectors. Leveling the washer's feet on a solid floor protects the dryer as much as the washer.
Repair and replacement on stacked designs
On a stacked pair, a failed dryer is replaced like any other, provided the new one accepts a kit for the washer you are keeping. If it does not, you may end up setting the two side by side, which the space may not allow. Check that before buying.
On a laundry center, a failed dryer half usually argues for repair, because replacing the unit throws away a working washer. The exception is an older center where the washer half is also leaking or grinding; then one new unit solves both. Many repairs to the dryer half, such as the belt, rollers, fuse or heating element, happen with the unit in place, working from the front and top.
- Keep the stacking kit or the brackets if you unstack, since the new machine may reuse them.
- Write down both model numbers of a stacked pair, and the single one of a laundry center, before booking.
- Pull the unit out only as far as its gas connector or power cord safely allows.
